2009 - 760 000€

Yard : ALLIAGE / FR

Architect : BERRET / RACOUPEAU

French flag : VAT paid

 N° WIN : FRALL53205G909

This boat is second-hand, the 5th in a series of 5, built in 2009.

The first owners sailed around the world from 2010 to 2020 in a tropical zone, sailing 6 months a year and wintering the boat the other months.

Purchase of the boat by the new owner in 2022.

Complete refit from the end of 2022 to 2023 to bring the boat up to standard for a new 10-year programme of sailing in all latitudes

(Antarctica, Alaska NW Passage, tropical zone), starting with a non-stop single-handed round-the-world voyage.

Replacement and overhaul of a very large part of the equipment for the departure in October 2023.

The owner is putting the boat up for sale for personal reasons.

General characteristics :

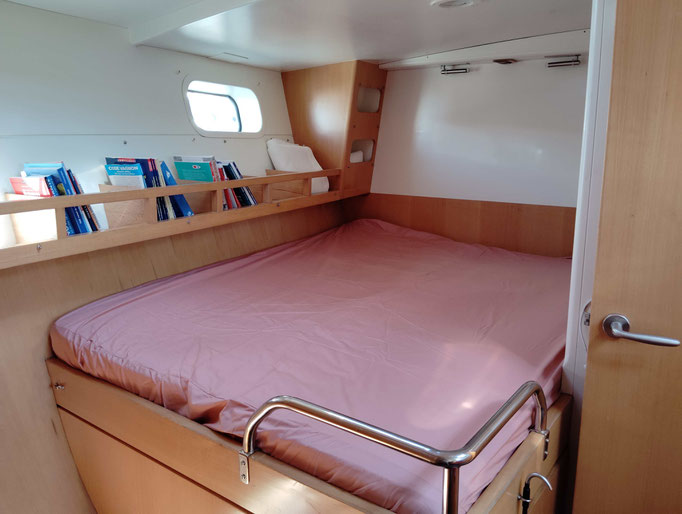

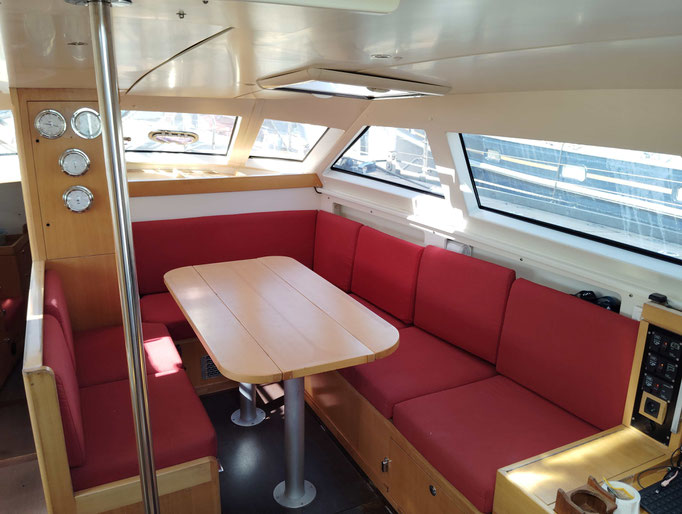

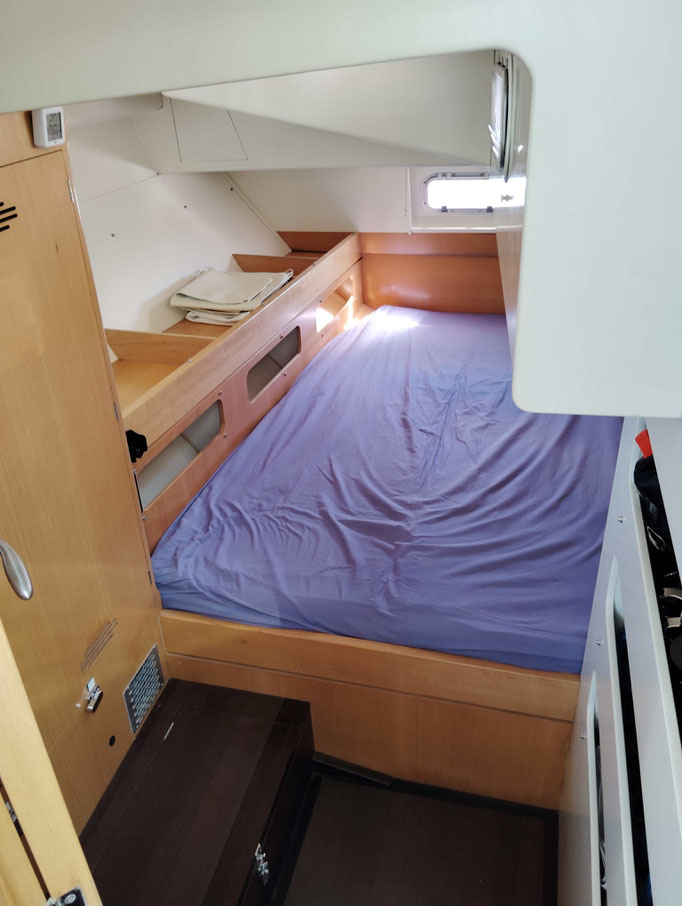

Shipyard: ALLIAGE / FR - Length : 16.84 m - Beam : 4.8 m - Material: aluminium - Rigging: Cutter - Draft: 1.50m / 3 m - Ballast type: lifting keel with 3T ballast - Displacement : 18T (light 13T) - Version 3 cabins (1 double berth forward, 1 double berth aft starboard and 1 single berth aft port) + 2 heads and a large sail locker forward - Sleeping accommodation: 6 (including 1 in the saloon) - Fuel tank: 1100 L (2 x aluminum + 4 x polyurethane)

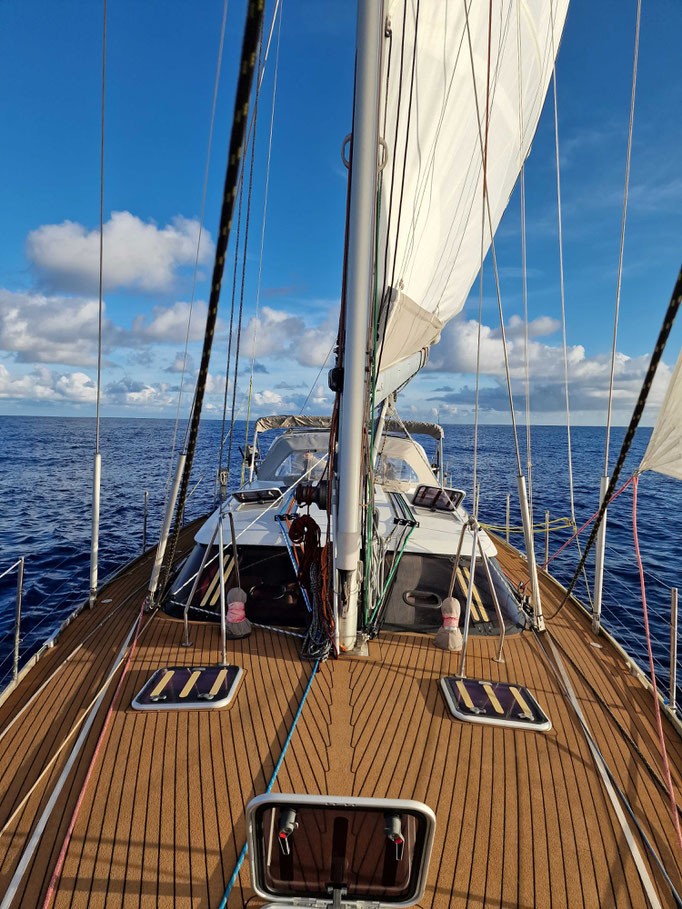

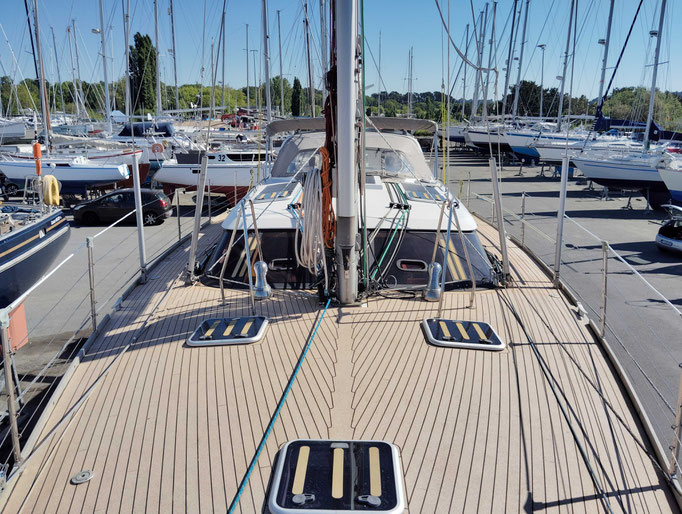

Water tank: 2 x 350L aluminum (complete cleaning 2022) - Deck covering Marinedeck 2000 non-slip and insulating (cork + polyurethane), Overhauled 2024 - White beech joinery - Insulated hull, 45mm foam.

Rigging & Sails:

Sparcraft mast + boom + spinnaker pole, rigging designed by Tonnerre

Complete standing rigging 2023 (inspected 2024) - Complete new running rigging 2023 + large reserve  - Battened mainsail 68 m², Hydranet sailemaker Incidence (2023) - Facnor mast track & mainsail ball cars (Change of bottom of track and ball cars 2023) - 3 Semi-automatic reefs - Downhaul (2023) - Walder boom brake (2023) - Lazy Bag & Lazy Jack (2023) - Genoa (Solent) 62 m² on Profurl C430 furler, Hydranet sailmaker Incidence (2023) - Staysail 30 m² on furler Profurl C430, Hydranet sailmaker Incidence (new 2023) (old staysail in reserve) - Gennaker 90 m², Stormlite sailmaker Le Bihan (2023, never used) - Facnor furler for gennaker -Asymmetrical spinnaker 100 m²  Incidence (overhauled 2023, 3 attachment points refurbished) - Spinnaker sock - Storm jib 8 m2.

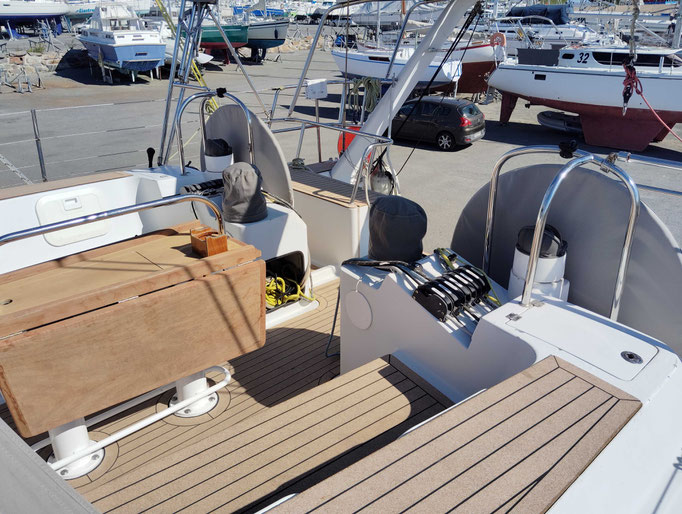

Deck fittings :

Winchs Lewmar

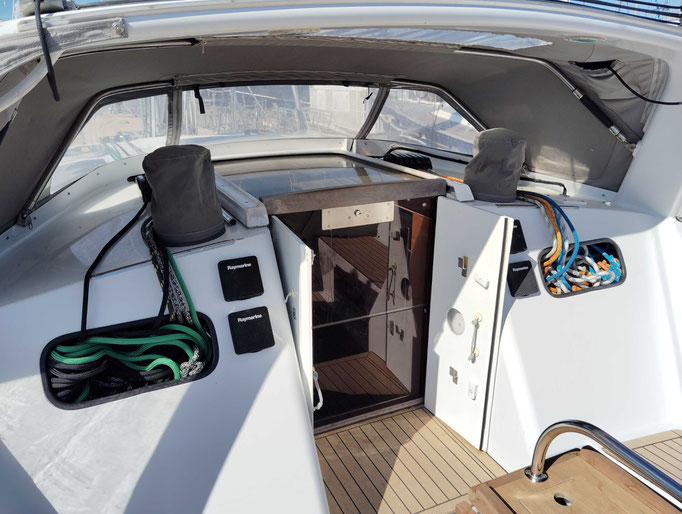

2 x 65 CST electric genoa winches (electrified 2023) - 1 x 54 CST starboard roof - 1 x 54 CST Electric on portside roof - 1 x 54 CST on mast - All manoeuvres referred to cockpit:

Mainsail: halyard, sheet, vang, 3 semi-automatic reefs, topping lift, footstay

Headsails: genoa sheets and furling system, staysail sheets and furling system, genoa sheet tracks, Spinnaker/Gennaker sheets, runners -

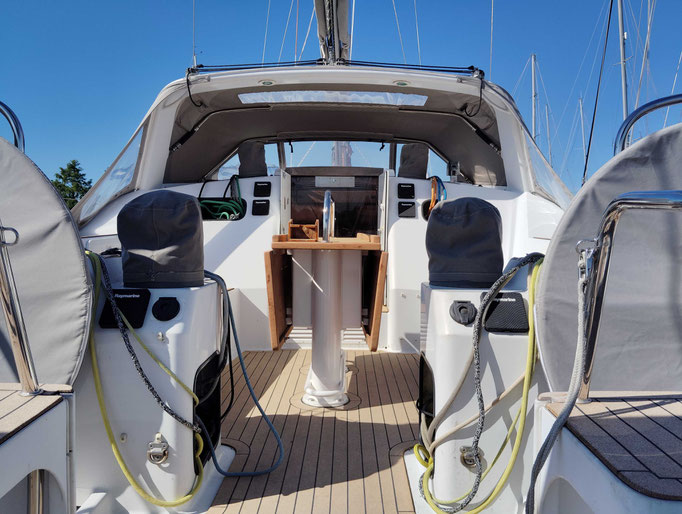

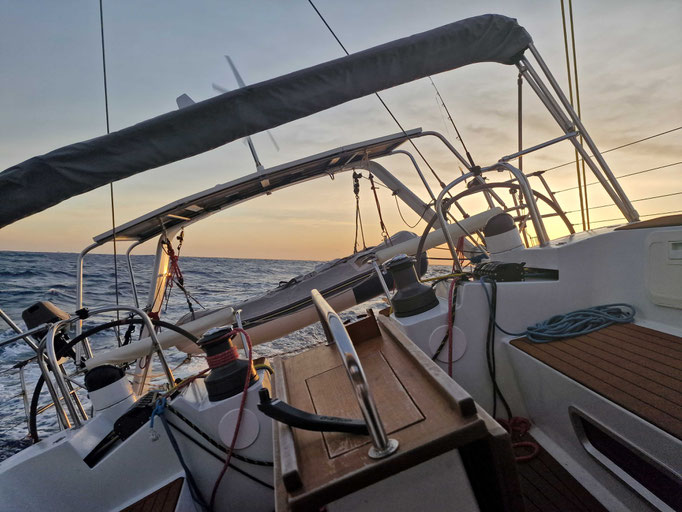

1 Mast ladder Outils Oceans (2023) - 1 Pack Ascension Navigator Petzl (new 2023) - Fixed cockpit table - Fixed sprayhood (2023) - Bimini (2023) - Cover between bimini and coachroof (2023) - 2 Awnings on boom for square shade - Numerous deck fittings, portholes and fittings protections

Engine :

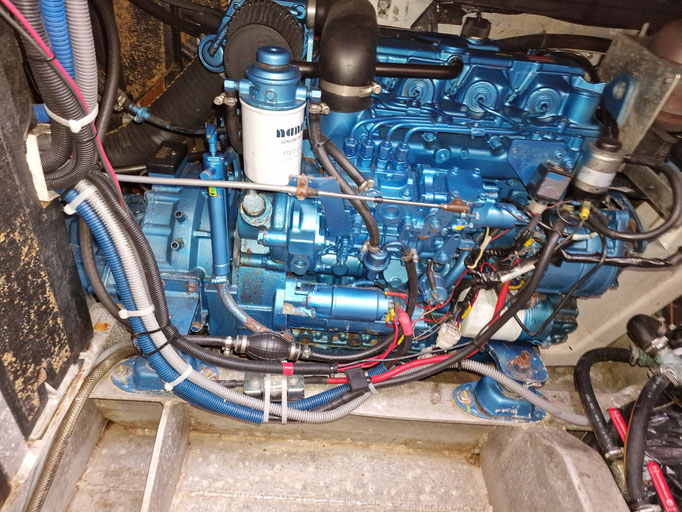

Nanni Diesel  N485 - 85cv - 3150 hours -  Line shaft

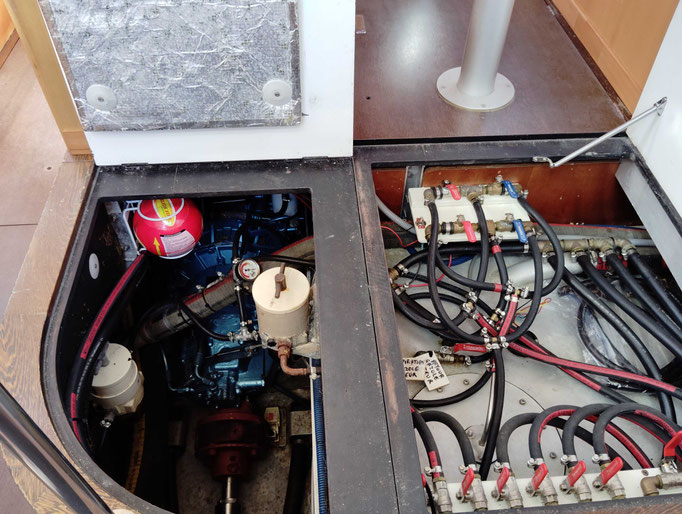

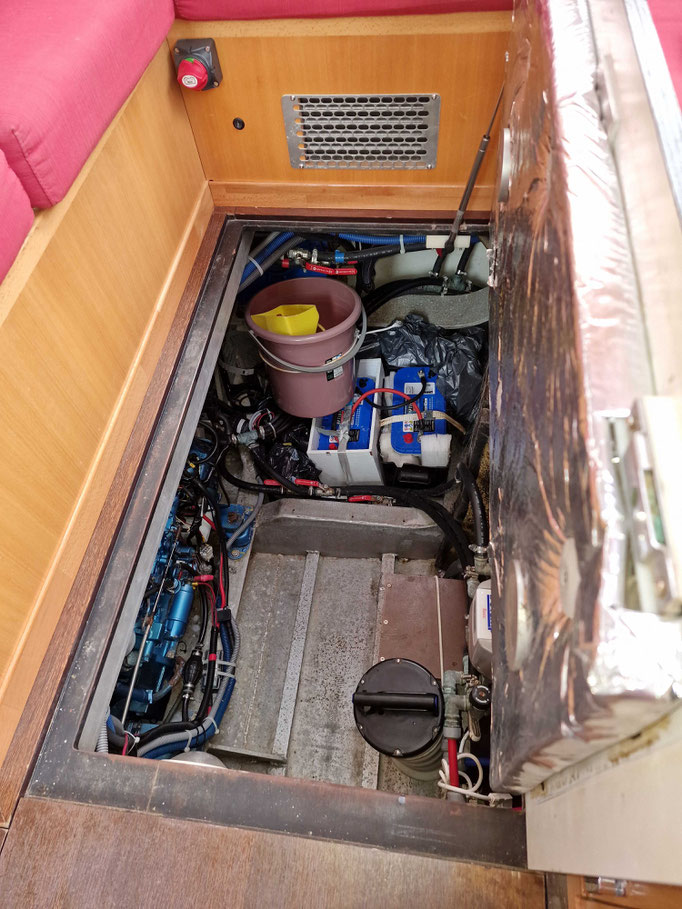

Max Prop propeller three-blade feathered (original propeller in reserve) - Very good access to the engine under the saloon - The cable harness was replaced

in 2019, total overhaul in 2023 - Emergency start - General overhaul 2023, new turbo, waterlock and throttle. Addition of an expansion tank on the cooling circuit -

Sleipner tunnel thruster - Side Power 95kg

Electricity :

Complete overhaul of power circuit 2023 - 12 V general installation - 220V circuit (7 sockets) -

8 x 120 Ah Victron gel service batteries (2023) - 1 x 50 Ah engine battery (2023) - 2 x 55Ah Propeller and windlass batteries (2023) - 2 x 75Ah keel winch batteries (2025) - Alternator 90A - Total solar panels 840w - Rigid solar panels Black-contact UNITECK 4x150w in front of aft gantry (2023) + Semi-flexible solar panels Solara 1x100W + 2x70W on roof (2023) - Wind turbine ATMB D400, 400w (2023-2024) - Watt and Sea hydro generator, hydro cruising 600 (overhauled by W&S 2023, hull repairs 2024) - Cristec SOLO 800 VA converter - Cristec SOLO 2000 VA converter - Victron CENTAUR 100A battery chargers (2023) - Cristec CPS3 100A battery charger - Mastervolt BTM3 battery manager - Mantagua NAVIPRO combined navigation + anchor + Stroboscope LED masthead light (2023) - Masthead light + Deck spotlight (2023) - Mantagua led front balcony navigation lights (2023) and light on rear gantry - Gantry and companionway arch lighting (2023).

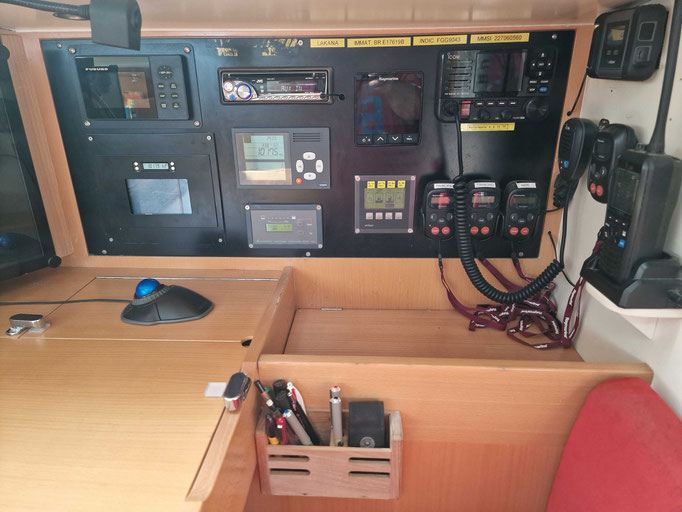

Electronics :

2 x Raymarine EV-400 SAIL autopilots (2023) + 2 x Lecomble&Schmidt 50ST linear units (2023, overhauled by L&S 2024) + 2 x  Raymarine p70s control panels (2023) + 4 x Raymarine pilot remote controls (2023)

Raymarine navigation system 6 i70s repeaters (2023) + Raymarine wind vane-anemometer (2024)

Detection :

Broadband radar Furuno DRS4D-NXT (2023), synchronisation and overlay TIME ZERO NAVIGATOR software mapping (2023), with protective circle

AIS Raymarine transmitter / receiver (tested 2023) + SEA-AI OSCAR ONE cameras for forward obstacle detection (2023) (24V)

Communication :

Fixed VHF DSC Icom M510E with AIS and GPS (2023) - Portable VHF ASN Icom M94DE with AIS and GPS (2023) + 2 spare batteries (Grab Bag) -

2 interchangeable masthead VHF/AIS antennas with multiplexer (2023) - 1 emergency VHF antenna on gantry (2023) - IRIDIUM GO + 1 back-up battery -

IRIDIUM Motorola EXTREME 9575 waterproof portable satellite telephone (2023) + 1 dual-capacity back-up battery (Grab Bag) - STARLINK MARITIME (2023)

Positioning :

GPS Furuno GP39 (2023) - Portable GPS Garmin GPSMAP 79S/SC (2023) (Grab Bag) - Tracking beacon DOLINK DOBOX G2 (2023) allows you to find out the boat's position on land (information for friends, family, etc.) - Possibility of BLOG - Remote alarm function.

Weather :

1 x METEOGRAF 0.1 hPa precision electronic barograph recorder (2023) - 1 x VionV- A4003 precision marine weather station (2023) - 1 x Vion  wall-mounted barograph - 1 x Vion wall-mounted thermometer/hygrometer

Leisure radio :

1 JVC KD-PDR41 fixed car radio - 2 Indoor speakers (2023) - 1 Portable shortwave radio Sangean ATS-909X2 (2023)

Clocks :

1 x Naudet-Dourde quartz wall clock (set to Local Time) - 1 x Vion wall clock (set to TU time) - 1 x Teem hypersonic alarm clock (timer up to 2 hours) - NMEA network interface.

Computers :

1 x L511 Rom Arrange rugged fixed computer (2023) - 1 x Getac S410 G3 rugged laptop (2023) - 2 Neovo TX-19O2 19-inch 1280x1024 IP65 ruggedised touch screens (2023) - 1 LOGITECH MX KEYS keyboard (2024) + 1 waterproof spare keyboard (2023) - 2 Kensington wired optical Trackball mice (2023) + 1 spare mouse

HP Officejet 250 Mobile All-in-One Bluetooth Printer (2023)

Sailproof 10' waterproof touchscreen tablet (2023) - Allows you to take control of the cockpit computer (TZ cartography, etc.) + Cockpit support arm

1 x starboard helm watertight USB socket for recharging tablet (2023).

WiFi networks :1 Wifi SHIPMODUL (2023)  - 1 Wifi router OSCAR (also used for the tablet) (2023) - 1 Wifi IRIDIUM Go

Navigation :

Software : TIME ZERO NAVIGATOR (latest version V5) + Radar Module - Routing Module + Worldwide coverage mapping

ADRENA OCTOPUS (V 20)

ADRENA alarm: 1 audible alarm + 1 red LED visual alarm (2023) + World TIME ZERO mapping - Paper map of major roads worldwide + landing charts (southern hemisphere) - World nautical instructions.

Comfort :

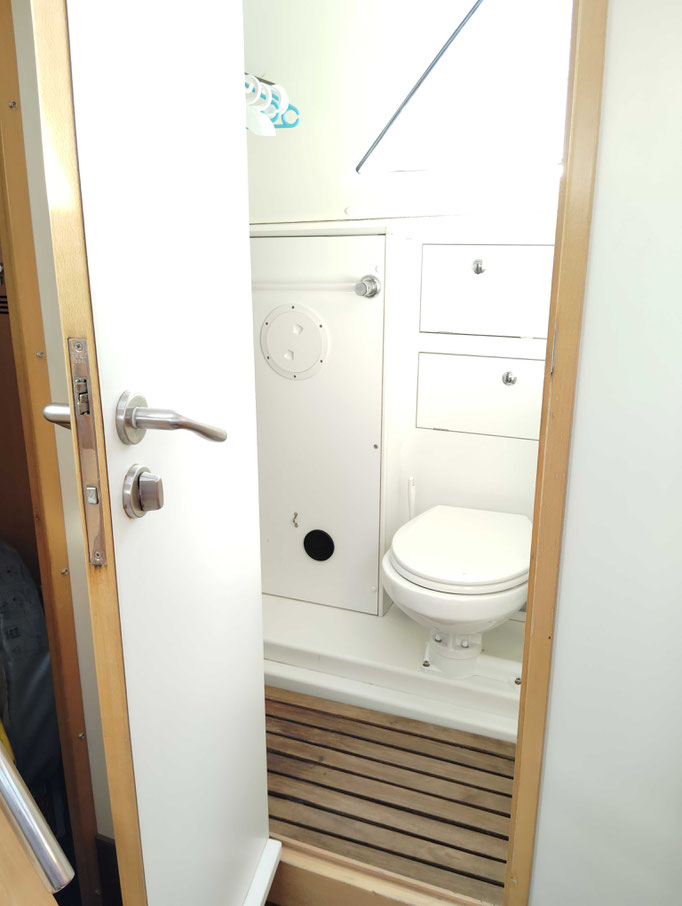

2 x Jabsco marine toilets (2023) - Babynova 1000 washing machine (2023, never used) - Watermaker SLCE Aquabase XE 50 l/h (total overhaul 2023 by SLCE Aquabase) - Katadyn Survivor 35 5 l/h manual watermaker (Grab Bag) - Eberspacher Hydronic M12 Marine water heater (2023) - Independent fan heaters in the 3 cabins + 2 toilets + saloon - Full bed linen (sheets, duvets, pillows) + 2 duvets - Tropical protection; deck hatches and companionway with mosquito screens -

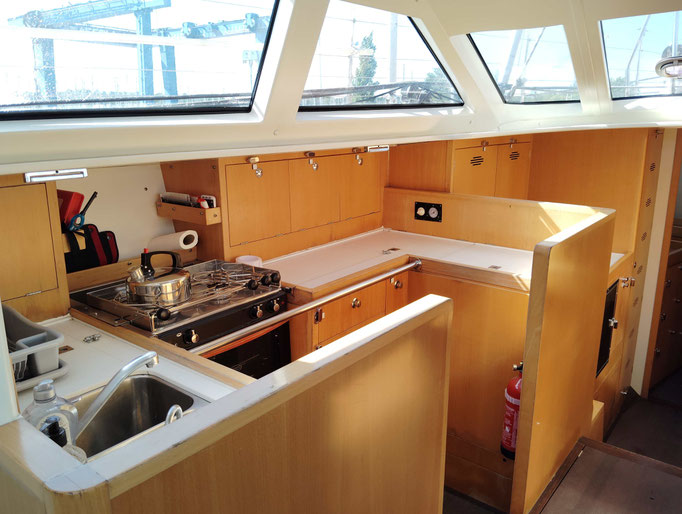

Eno ALLURE 2-burner marine cooker (burners, grate, knobs refurbished 2024) - Gas circuit rebuilt 2022 - 220 L refrigerator (new electronic circuit 2023) -Webasto Marine 70 l freezer (2023) - Complete cookware - Reinforcement of lockers and interior drawers (2023) - Vacuum packing machine (2023) + Complete fishing equipment - Shower on bathing platform.

Mooring :

Electric windlass Lewmar 1 600w (overhauled 2022) with tiller control + Front control new 2022 - Front anchor Spade 140 galvanised steel 30 kg (2022) -

Anchor chain 12mm (with markers every 10m) 100m (2022) + 50m cable - Davit: shafts + new sheaves (2024) - Delta 10kg Stern Anchor + 5m Anchor chain + 50m wire rope - Light anchor Fortress 8.6 kg (aluminium) + 50m polyester leaded D16.

Tender N°1 Zodiac Cadet 2m60 - 2013 (revised 2023) + outboard Tohatsu 2T 9.8hp (revised 2022 and 2023)

Tender N°2 AD 2,30m (2023) + outboard SUZUKI 4T 2.5hp - Davit for tender.

Safety :

Liferaft 4 places Plastimo Transocéan ISAF +24H 2022 (To service in 2025)

Beacons :

       1 x EPIRB McMURDO SMARTFIND G8 AIS beacon (2022)

       1 x PLB1 OCEAN SIGNAL RescueMe beacon (2022)

       1 x PLB3 OCEAN SIGNAL RescueMe beacon (AIS, EPIRB) (2023)

       1 x PLB FASTFIND RETURNLINK distress beacon (2022)

4 x Safety bras - 1 Viking survival suit (2023) - Electronic distress light OCEAN SIGNAL EDF1 (2023) (Grab Bag) - Flare gun (Grab Bag) - 4 x Fire extinguishers (2022) -

1 x engine fire extinguisher (2025) - 4x  ELIDE FIRE fire balls (2 engine, 1 electrical cabinet, 1 heating cabinet) (2023) - 2 kitchen fire blankets - 4 Lifelines (2023) - Anti-ejection safety harness for chart table seat (2023) - Doubling of lifelines, child protection (2023) - 2 ISI-FISH Banana Pingers (new 2023).

Grab bag:

1 x McMURDO SMARTFIND G8 AIS EPIRB beacon (2022) - 1 Watermaker Katadyn SURVIVOR 35 4.5 L/hour (2023) - 1 Portable GPS Garmin GPSMAP 79S/SC (2023) - 1 x  VHF portable DSC Icom M94DE with AIS and GPS (2023) + 2 back-up batteries - 1 IRIDIUM MOTOROLA EXTREME 9575 waterproof satellite phone (2023) + 1 dual-capacity back-up battery - 1 Flare gun - 1 OCEAN SIGNAL EDF1 electronic distress light (2023)

Astronomical Navigation PACK:

1 Cassens & Plath Horizon-Ultra Sextant (2023) + adjustment and maintenance equipment -1 Waterproof digital chronometer (2023) - 1 STAR-FINDER Universal star finder (2023) - 1 Casio Graph 25+ Pro calculator + Astro software (2023) - Various tables.

Seamanship PACK:

Sail Repair Pack:

Flag-making PACK:

Tools : Important (2023)

Diving:

1 Hookah (revised 2023)

1 x 8 L bottle (revised 2023) with regulator (2023)

1 Full wetsuit + booties + gloves (2023)

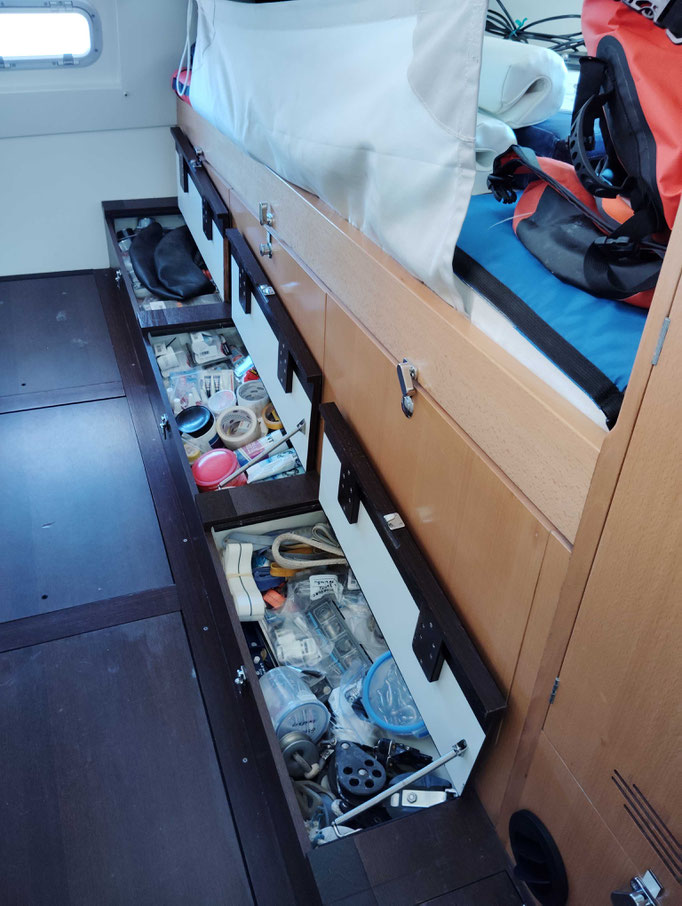

Spare parts:

Pharmacy: miscellaneous equipment
