OVNI 450 - (2018 - 2021)

Architect : Marc Lombard

The OVNI 450 is the new version of the OVNI 445, of which already 46 units have been built since the first one in 2008. Marc Lombard, who designed the original plans of this amazing lifting keel, has thought of new elements to give it a new youth.

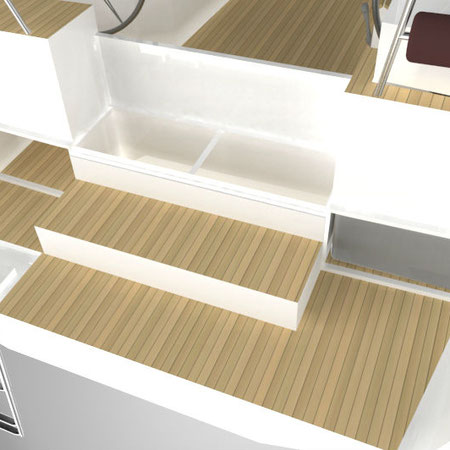

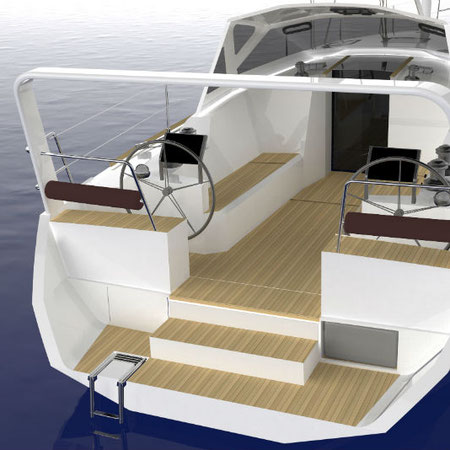

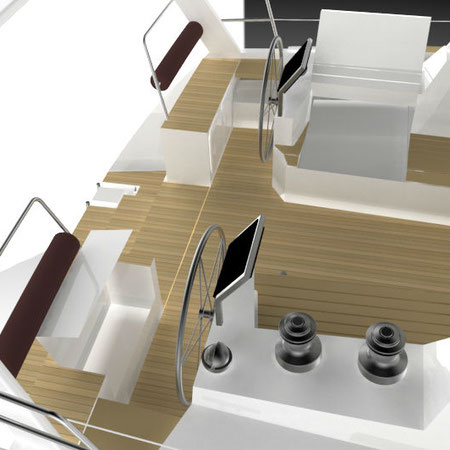

On the same hull underbody of the OVNI 445, the OVNI 450 will have a wider rear skirt with flat flooring and an open access to the cockpit. It will be equipped with twin helm stationsbigger fixed hull portholes and a straighter stem. There will also be a bow nose that will include the bow roller, a bigger opening porthole for the storage locker and a more designed anchor pulpit.

Various options of the 445 will become standard on the 450, like the Staron cockpit table or the S/S ladder integrated to the swim platform, among others.





Main Features



Hull length 13,95m

Length at waterline  12,70m

Maximum beam  4,29 m

Draught with centerboard down   1,05 m

Draught with centerboard up  2,90 m

Light displacement  11 550 kg

Ballast weight   3 725 kg

Water tanks  540 l

Fuel tanks  2 x 250 l

Sail area on the wind   95,50 sqm

Mainsail  43,50 sqm

Genoa 52 sqm

Staysail   25 sqm

Engines :  Volvo D2-50 shaft drive (36,5 kw)



CE approval class : A


Télécharger
Technical specifications
OVNI 450 - Descriptif - Dec 2017.pdf
Document Adobe Acrobat 1.1 MB
